pitz_interlock_klystron
(revised for PITZ 1.6)

pitz_interlock_klystron

Component name: pitz_interlock_klystron
task: show the status of all klystron interlocks
CAF file: pitz_interlock_klystron.CAF
DESY: PITZ DESY
person / phone: Bert Schoeneich / 7373
called from: pitz_interlock
host / server: /
Device Base Address:
comments:
1 description of the SPS-values opto22.xls
2 description of one IP_DIGI value pitz_interlock1.htm
3 PITZ interlock names list pitz_interlock_names.htm
4 PITZ meta server documentation meta_doc.html
5 klystron interlock
description of the interface from the klystron interlock to the control system intlk2control.doc
main interlock signals (blue: on low level rf) Intlock-main-signals.xls
low level rf signals Intlock-LLR-signals.xls
LED's on the klystron interlock rack in the klystron hall KLIntlk-Display-leds.doc
problems:

1

 if ALL lamps are red and in the watchdog window on the "corvus" SVR.KLYS and SVR.META are green and OK then:
- click on SVR.KLYS and try to restart the server  in the opening window
- click on SVR.META and try to restart the server  in the opening window
If after this actions the lamps are still red:
call the person which is responsible for the KLYSTRON / RF on this shift (Rufbereitschaft)

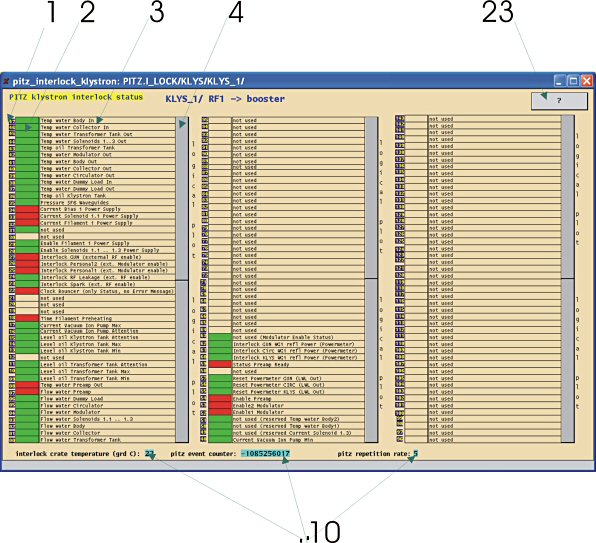

contents:
  name / task / value click double click
1 interlock (bit) name
2 interlock bit status
interlock is ok

green
interlock is broken red
interlock bit is not used not colored
pitz_interlock_klystron_plot
3 interlock description
4 show history of all interlocks in this group pitz_interlock_klystron_plot_sum
10 special interlock measured value history
30 help button this window

Last modified: Februar 23, 2010 13:44 , Bert Schöneich, mailmailto: PITZ - webmaster
