pitz_interlock_klystron_plot

pitz_interlock_klystron_plot_sum
(revised for PITZ 1.6)

pitz_interlock_klystron_plot

Component name: pitz_interlock_klystron_plot
task: show history of all klystron interlocks
CAF file: pitz_interlock_klystron_plot.CAF
DESY: PITZ DESY
person / phone: Bert Schoeneich / 7373
called from: pitz_interlock_klystron
host / server:
Device Base Address:
comments:
1 description of the SPS-values opto22.xls
2 description of one IP_DIGI value pitz_interlock1.htm
3 PITZ interlock names list pitz_interlock_names.htm
4 PITZ meta server documentation meta_doc.html
5 klystron interlock
description of the interface from the klystron interlock to the control system intlk2control.doc
main interlock signals (blue: on low level rf) Intlock-main-signals.xls
low level rf signals Intlock-LLR-signals.xls
LED's on the klystron interlock rack in the klystron hall KLIntlk-Display-leds.doc
problems:
contents:

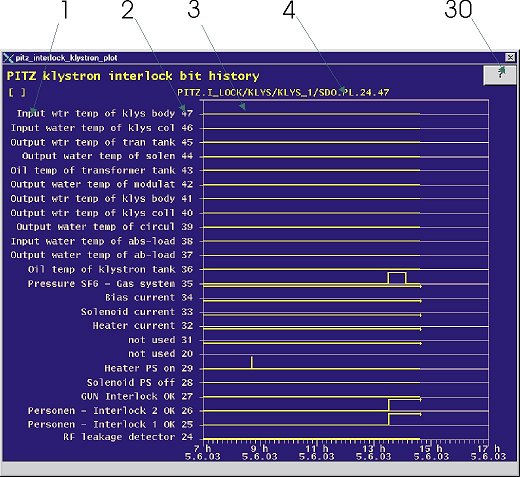

  name / task / value click double click
1 klystron interlock (bit) description
2 interlock (bit) number
3 histroy
4 klystron interlock (bit) group
30 help button this window

Last modified: Februar 23, 2010 13:44 , Bert Schöneich, mailmailto: PITZ - webmaster
