pitz_klystron_control
(revised for PITZ 1.6)

pitz_klystron_control

pitz_klystron_control

Component name: pitz_klystron_control
task: start the PITZ klystron and radio frequency control
CAF file: pitz_klystron_control.CAF
DESY: PITZ Zeuthen
person / phone: Bert Schöneich (7373) // Bagrat Petrosyan (7484)
called from: pitz
host / server: -
Device Base Address: PITZ.RF/MODULATOR//
comments: PITZ klystron and radio frequency control graphical user interface (gui)
problems:
boot or reboot the RF control system computer (vmeultra2) pitz_rf_computer
other documentations not available If there are questions or problems with this part call Bagrat Petrosyan / 7255.

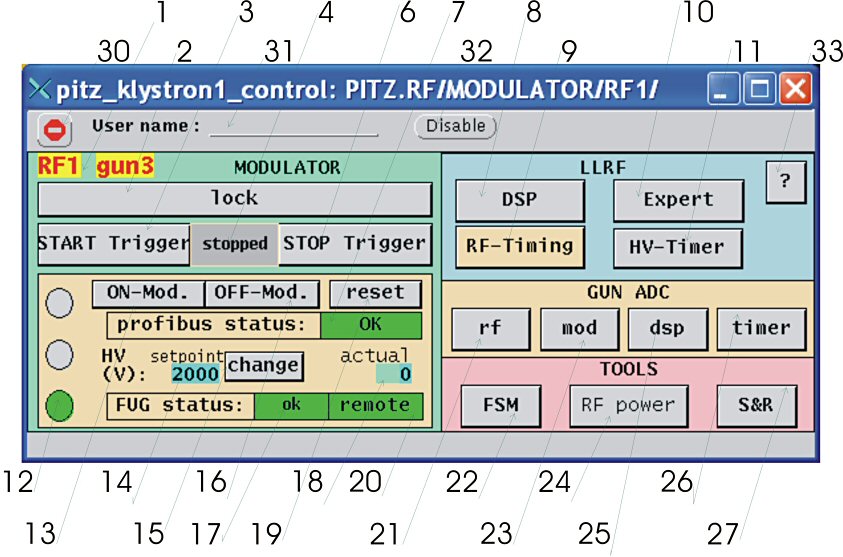

contents:
# name / task / value click double click
1 rf DOOCS address
2 call window for lock or unlock the modulator
(access is very strictly constrained)		 pitz_rf_control_expert
3 start the trigger
(is hidden if the modulator is locked)
4 trigger status (started or stopped)
(is hidden if the modulator is locked)
6 stop the trigger
(is hidden if the modulator is locked)
7 profibus status (ok or not ok)
8 open window for start rf operation RF_OPERATION
9 open window for rf timing DSP_TIMING
10 rf gun expert window RFGUN_Expert
11 timer window for the high voltage timer_rf
12 status lamps for the modulator LIKE in the control room
         red: on with HV
         yellow: on without HV
         green: all if off
13 set modulator ON do it
14 hv setpoint value (V)
15 change the hv setpoint by using a show text panel text_input_window
16 set modulator off do it
17 show radio frequency high voltage control bit
(ok or not ok)		 pitz_rf_hv_show_bit
18 hv actual value (V)
19 reset modulator do it
20 FUG control status (remote or local) pitz_rf_hv_show_bit
21 show and manage ADC module GUN_ADC1
(may be one or two buttons - rf or wg1 and wg2)		 adc_modul
22 finte state machine
23 show and manage ADC module GUN_ADC2 adc_modul
24 shows RF data rfinf.CAF
25 show and manage ADC module GUN_ADC3 adc_modul
26 timer window for ADC control timer.CAF
27 save and restore tool for rf pitz_save_and_restore_rf.CAF
30 secure sign enable user logon
31 logon user name
32 disable user logon disable user logon
33 help button this window
