| Component name: |
pitz_pitz_rf_hv_show_bit |
| task: |
show the high voltage bits of the radion frequency system |
| CAF file: |
pitz_pitz_rf_hv_show_bit.CAF |
| DESY: |
PITZ DESY |
| person / phone: |
Bert Schoeneich / 7373 |
| called from: |
pitz_klystron_control |
| host / server: |
|
| Device Base Address: |
|
| comments: |
|
| problems: |
Other documentations are not available.
So if there are questions or
problems with this part call
Bagrat Petrosyan / 7484. |
| |
|

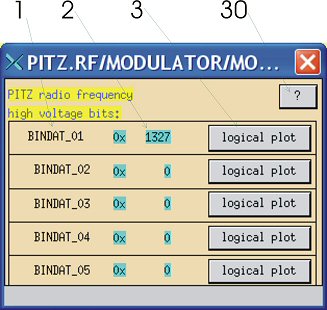

| contents: |
| |
name / task / value |
click |
double click |
| 1 |
bit name |
|
|
| 2 |
bit value (HEX) |
|
|
| 3 |
logical plot for the bits |
pitz_interlock_klystron_plot (as an example for logical plots) |
|
| 30 |
help button |
this window |
|
|
