| Component name: |
adc_modul |
| task: |
show the status of one adc and handle this adc |
| CAF file: |
adc_modul.CAF |
| DESY: |
PITZ DESY |
| person / phone: |
Petrosyan, Bagrat 1L/46 7255 |
| called from: |
adc |
| host / server: |
|
| Device Base Address: |
|
| comments: |
| 1 |
for questions and remarks ask Petrosyan, Bagrat
1L/46 PITZ 7255 |
| 2 |

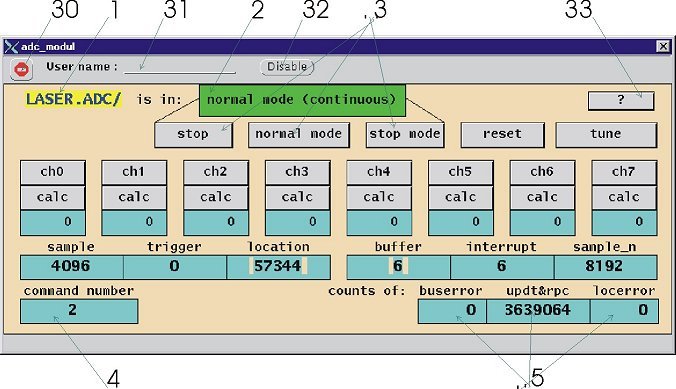

Bagrat's description
: The window consist of 4 rows:
I. Row 1
a. Button "stop" stops the adc (command "0").
b. Button "normal mode" starts the adc in the continuous-mode
(command "2").
c. Button "stop mode" starts the adc in the stop-mode (command
"4").
d. Button "reset" reset the errors (see row 4).
e. Button "tune" serves for the sample and trigger numbers
adjusting. A new window will appear if push this button.
II. Row 2
Eight buttons each to show the correspondent adc channel spectrum. "calc"
buttons gives historys of result or processing spectrum data.
There is a more detailed description for the available behind that
buttons.
III. Row 3
Six rectangle areas to display information about current state of
adc: a. Sample number. b. Trigger number. c. Current buffer memory
location. d. Current buffer number. e. Program interrupt counter
f. Measured number of samples since last update.
IV. Row 4
a. Rectangle area displays the current command value.
b. Three rectangles show errors.
c. Five buttons for spectrum processing window. |
|
| problems: |
|
| contents: |
| |
name / task / value |
click |
double click |
| 1 |
adc name |
|
|
| 2 |
adc status
| adc is running in normal mode (continuous) |
mode name |
adc is NOT running in normal mode
(is running in "stop" or "stop mode") |
mode name |
|
|
|
| 3 |
set the adc mode |
set the mode |
|
| 4 |
command number, DOOCS intern, for command above (point 3) |
|
|
| 5 |
counts of several events |
|
|
| 30 |
secure sign |
enable user logon |
|
| 31 |
logon user name |
|
|
| 32 |
disable user logon |
disable user logon |
|
| 33 |
help button |
this window |
|
|
