| Component name: |
pitz_interlock_history |
| task: |
show the status history of all interlocks |
| CAF file: |
pitz_interlock_history.CAF |
| DESY: |
PITZ DESY |
| person / phone: |
Bert Schoeneich / 7373 |
| called from: |
pitz_interlock , pitz_diagnostic |
| host / server: |
pitzvme02.ifh.de / SVR.IPDIGI |
| Device Base Address: |
PITZ.I_LOCK/BIS/BIS*/ or PITZ.I_LOCK/GIS/GIS1/ |
| comments: |
| 1 |
description of the SPS-values opto22.xls |
| 2 |
description of one IP_DIGI value pitz_interlock1.htm |
| 3 |
PITZ interlock names list pitz_interlock_names.htm |
| 4 |
the bit values in "1" below have the meanings:
| bit value |
meaning |
|
0 |
ok / yes / switch on / go in / in / on
/ not broken / ... |
|
1 |
not ok / no / switch off / go out / out /
off / broken / ... |
|
| 5 |
klystron interlock
|
|
| problems: |
|

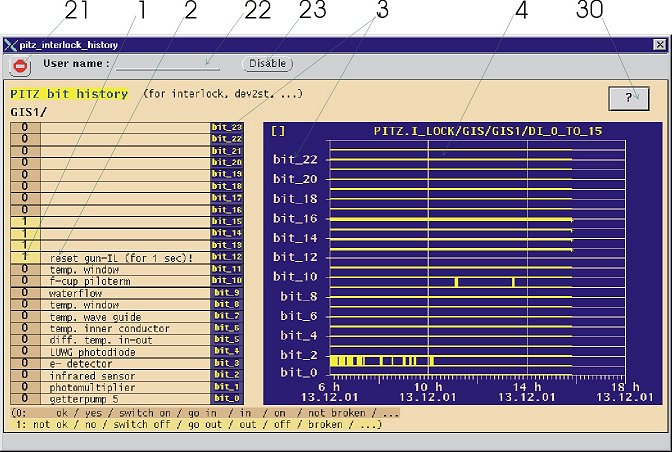

| contents: |
| |
name / task / value |
click |
double click |
| 1 |
interlock status (see "comments" above, point 4)
| interlock is ok |
0 |
| interlock is broken |
1 |
|
|
|
| 2 |
interlock description |
|
|
| 3 |
bit name of an interlock |
|
|
| 4 |
status of an interlock over the time |
|
|
| 21 |
secure sign |
enable user logon |
|
| 22 |
logon user name |
|
|
| 23 |
disable user logon (not visible in this window, if needed, please
make the window wider) |
disable user logon |
|
| 30 |
help button |
this window |
|
|
