pitz_tcombiner_temperature
(revised for PITZ 1.6)
| Component name: |
pitz_tcombiner_temperature |
| task: |
T-combiner temperature control |
| CAF file: |
pitz_tcombiner_temperature.CAF |
| DESY: |
PITZ DESY |
| person / phone: |
Bert Schoeneich / 7373 |
| called from: |
PITZ_water_win,
pitz2_wcs_buttons |
| host / server: |
vmepitz04 / SVR.SLADC |
| Device Base Address: |
PITZ.DIAG/SLOWADC// |
| comments: |
|
| problems: |
|
| contents: |
| # |

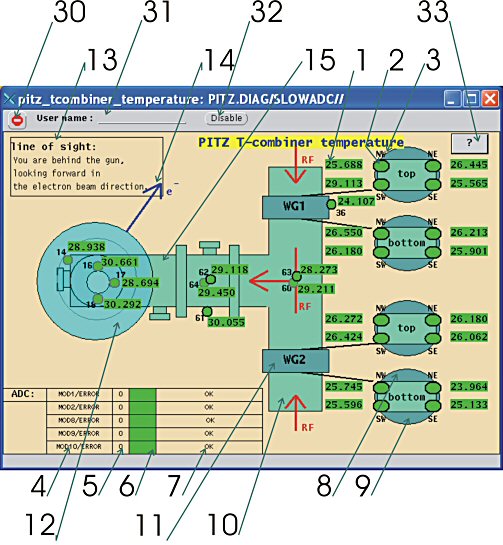

name / task / value |
click - window |
double click - window |
| 1 |
temperature (green: ok, red: problem) |
history |
|
| 2 |
status of the ADC for this temperature sensor
(green: ok, red:
problem, white: not connected)
(border: if you see the gun in this orientation:
black: the sensor is visible;
grey: the sensor is not visible, he is behind the device) |
|
|
| 3 |
orientation of the wave guide |
|
|
| 4 |
ADC name |
|
|
| 5 |
ADC status flag value |
|
|
| 6 |
ADC status (green: ok, red: problem) |
|
|
| 7 |
ADC status description |
|
|
| 8 |
rf window top surface |
|
|
| 9 |
rf window bottom surface |
|
|
| 10 |
waveguide |
|
|
| 11 |
rf window |
|
|
| 12 |
gun |
|
|
| 13 |
description of the line of sight:
"You are behind the gun, looking forward in the electron beam
direction." |
|
|
| 14 |
electron beam direction |
|
|
| 15 |
coupler (from the T-combiner to the gun) |
|
|
| 30 |
secure sign |
enable user logon |
|
| 31 |
logon user name |
|
|
| 32 |
disable user name |
disable user logon |
|
| 33 |
help button |
this window |
|
|
|
