pitz_radiation_overview

pitz_radiation_overview

Component name: pitz_radiation_overview
task: PITZ radiation protection and safety - overview window
CAF file: pitz_radiation_overview.CAF
DESY: PITZ Zeuthen
person / phone: Bert Schöneich / 7373
called from: pitz
host / server: columba.ifh.de / SVR.RADPROT
Device Base Address: PITZ.RAP/RADPROT//
comments:
documentation Dokumentation Strahlenschutzsoftware für PITZ  (in german only!)
database see tuovi:
PITZ -> manuals -> radiation safety -> radiatin protection dabase documentation
description of the variables radiation safety variables
compute the radiation rate dosisleistung_berechnung (Schöneich)
dosisleistung_berechnung (Klimek)
documentation of the doocs server  rap_server docu.html (Abrahamyan)
system error means problem with the connection to the data aquisition program and to the database
radiation protection database check the database replication
radiation protection database way to start Manfred Zimmers java interface and gui
how to start/stop crate and/or pitzrap how_to_start_stop_pitzrap.pdf
how to restart a detector how_to_restart_a_radprot_detector.pdf
problems:
contents:

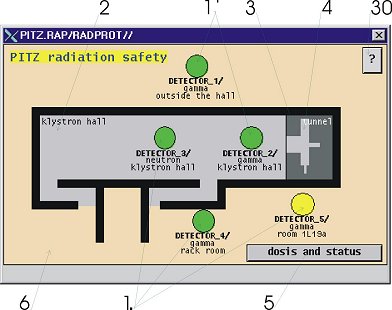

  name / task / value click double click
1 detector with number, type and location
each detector status is ok
green: circle
at least one detector status is wrong
red: circle
shorting plug is on, detector is bypassed
yellow: circle
detector dosis and status
2 klystron hall over the tunnel
3 the tunnel
4 the gun
5 show for all detectors the dosis value and the status detector dosis and status
6
no system error (see comments)
a system errors (see comments) occurs

system error
nothing
detector dosis and status

30 help button this window
