pitz_mirror

pitz_mirror

Component name: pitz_mirror
task: laser beamline: one mirror or pinhole
CAF file: pitz_mirror.CAF
DESY: PITZ DESY
person / phone: Bert Schoeneich / 7373
called from: pitz_laser_beamline
host / server: pitzoc.ifh.de / SVR.
Device Base Address: PITZ.LASER/BEAMLINE/PINHOLE.P1/ or PITZ.LASER/BEAMLINE/MIRROR.M*/
comments:
1 'relativ' means relativ to the nominal postion, which is adjustable in pitz_mirror_expert
2 (8) and (9) has two states, this part of the pinhole/mirror is:
not on the move, ready to start moving DO IT (or to nominal )
on the move, emergency stop possible EMERGENCY STOP
3
mirror (5), (6) and (7): units are millimeter
pinhole (5), (6) and (7): units are micrometer
4 lists of warning and error messages which appears by moving mirrors
problems:
1 To-do-list for restarting or starting the computer for the laser beamline: pitz_laser_computer.htm
documents:
1 whole laserbeamline documentation lbl_documentation_index
2 hints for using a mirror lbl_standard_window_mirror

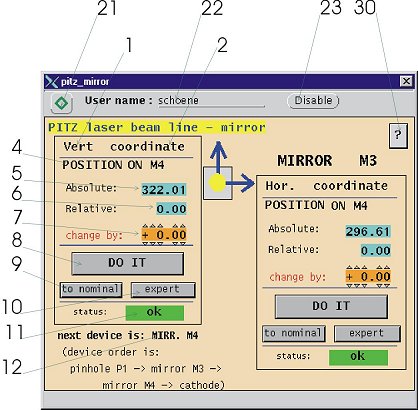

contents:
  name / task / value click double click
1 name of the direction (pinhole: X, Z; mirror: Hor., Vert)
2 type of the direction (pinhole: direction; mirror: coordinate.)
4 kind of the following values (5), (6)
pinhole P1 position in mkm (pinhole µm)
mirror M3 position on on M4 (mirror M4)
mirror M4 postion on cath (cathode)

5 absolute value of (4)
6 relative value of (4), relative to nominal value
7 value for changing (4), (5) and (6) change the value
8 change the value (5), (6) with (7), states see 'comments' do it
9 set (4) to the nominal value, states see 'comments' set it
10 open the expert window for one (!) direction or coordinate pitz_mirror_expert
11
status window
all is ok READY
warnings ( list of warnings ) show warning
errors (list of errors) show error
device is on the move moving
device is in use for scanning on the cathode scanning
if warning or error

pitz_lbl_error


12 next device in the direction of the laser beam
21 secure sign enable user logon
22 logon user name
23 disable user logon disable user logon
30 help button this window
