PITZ - Photo Injector Test Facility - graphical user interface - documentation (DESY Zeuthen)
 (table of contents v3.004)
Last modified: 07.07.2005

pitz_laser_beamline

pitz_laser_beamline

Component name: pitz_laser_beamline
task: laser beamline - overview window
CAF file: pitz_laser_beamline.CAF
DESY: PITZ Zeuthen
person / phone: Bert Schöneich / 7373
called from: pitz
host / server: pitzoc.ifh.de / SVR.
Device Base Address: PITZ.LASER/BEAMLINE/MIRROR.M*/
PITZ.I_LOCK/BIS/BIS1/ for the laser shutter
comments:
1 The background color is more darker then in the other gui windows for seeing the laserbeam way better.
problems:
1 To-do-list for restarting or starting the computer for the laser beamline: pitz_laser_computer.htm
2 To handle the virtual cathode 2 mirrors ( low and high reflection) there are in two cases to move the two translation stages two buttons on the same place in the window, where one button is visible and the other button behind this visible button isn't visible:
PULL OUT has two buttons for setting:
PITZ.I-LOCK/GIS/GIS1/REG14 1
PITZ.I-LOCK/GIS/GIS1/REG15 1
HIGH REFL. PUSH IN has two buttons for setting:
PITZ.I-LOCK/GIS/GIS1/REG14 0
PITZ.I-LOCK/GIS/GIS1/REG15 0
LOW REFL. PUSH IN has one button for setting:
PITZ.I-LOCK/GIS/GIS1/REG14

0
documents:
1 laserbeamline software documentation from Michael Winde (April 2005) laserbeamline software_docu

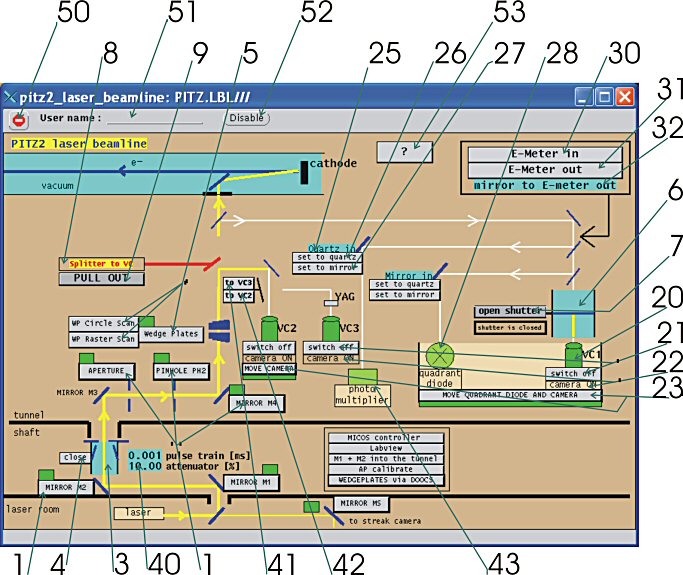

contents:
  name / task / value click double click
1 mirror, show status rectangle and handle button
each status is ok
green: circle
at least one is wrong
red: circle
pitz_mirror
2 cathode scan handle button pitz_cathode_scan
3 laser shutter (show the close and the open state in different pictures)
4 laser shutter set open or close
5 laser shutter handling for experts pitz_diagnostic_expert
6 virtual cathode 2 shutter (show the close and the open state in different pictures)
7 virtual cathode 2 shutter set open or close
8
status window
device is outside the beam OUT
high reflection mirror is inside the beam HIGH IN
low reflection mirror is inside the beam LOW IN
device is moving  moving
position error position error
unknown  error unknown error

9
handle button
both mirrors are outside the laser beam HIGH REFL. PUSH IN
LOW REFL. PUSH IN
a mirror is inside the laser beam PULL OUT
do the operation
30 secure sign enable user logon
31 logon user name
32 disable user logon disable user logon
33 help button this window
