pitz_magnets_mainbuck
(revised for PITZ 1.6)

Component name:	pitz_magnets_mainbuck
task:	handle the values of the main and the bucking magnets
CAF file:	pitz_magnets_mainbuck.CAF
DESY:	DESY Zeuthen
person / phone:	Bert Schoeneich / 7373
called from:	pitz_magnets_top
host / server:	columba SVR.PITZEPICS
Device Base Address:	PITZ.CA/MAGNETS//

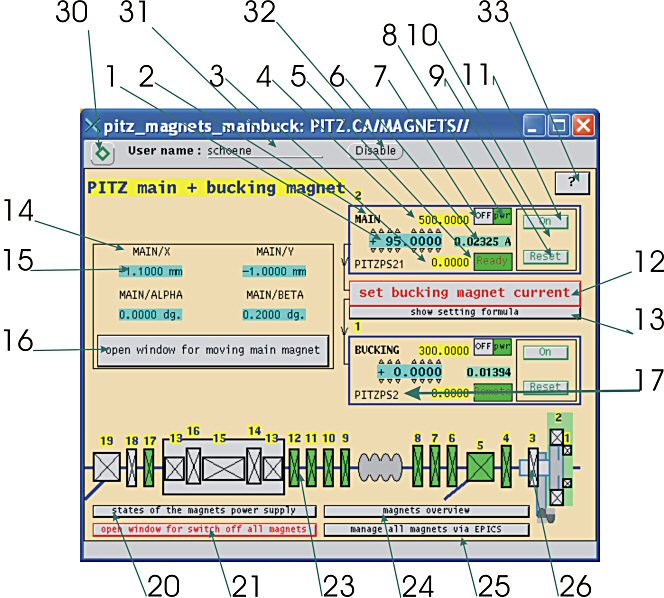

comments:	1 The magnets which are handled by this window have a light green background in the picture at the bottom of the window.
problems:	1 To-do-list for restarting or starting the computer for the magnets: pitz_magnet_computer.htm
contents:	# name / task / value click double click 1 magnet actual current (readback value)     2 DOOCS address of the magnet     3 logical lower limit (max lower limit of magnet current and power supply)     4 logical upper limit (min upper limit of magnet current and power supply)     5 local/remote status remote green: REMOTE local yellow: LOCAL     6 magnet current readback value     7 on/off status on green: ON off yellow: OFF     8 state of the power supply on/off switch at the power supply box in the rack room on green: pwr off gray: pwr     9 reset magnet values do it   10 switch off magnet (dimmed, if magnet is off) do it   11 switch on magnet (dimmed, if magnet is on) do it   12 set bucking magnet current as a function of the main magnet current and the  distance between the two magnets (perlscript mainbuck)   13 show the actual formula for setting the current of the bucking magnet as function of the current of the main magent net/corvus/doocs/bin/mainbuck     14 magnetmover: coordinate     15 magnetmover: actual coordinate value     16 handle magnetmover pitz_magnetmover   17 power supply name     20 open window for the states of the magnets power supplies pitz_magnets_states   21 open window for switch off all magnets (set current to 0) pitz_switch_off_all_magnets   23 all magnets, beam line, booster and gun     24 magnets top window (all magnets reachable) pitz_magnets_top   25 manage all magnets via EPICS open EPICS window   26 magnet picture magnet is on green magnet is not on grey     30 secure sign enable user logon   31 logon user name     32 disable user name disable user logon   33 help button this window

Last modified: Februar 23, 2010 13:44 , Bert Schöneich, mailto: PITZ - webmaster
