pitz_magnetmover
(revised for PITZ 1.6)

pitz_magnetmover

Component name: pitz_magnetmover
task: move the main magnet
CAF file: pitz_magnetmover.CAF
DESY: PITZ DESY
person / phone: Bert Schoeneich  7373 (for the gui) / Michael Winde 7378 (for the mover- and the server-software)
called from: pitz_magnets_mainbuck
host / server: pitzvme01.ifh.de / SVR.MAGMOV
Device Base Address: PITZ.MAGNETS/MAGNETMOVER/MAIN/
comments:
1 There is a detailed instruction, including error descriptions.
problems:

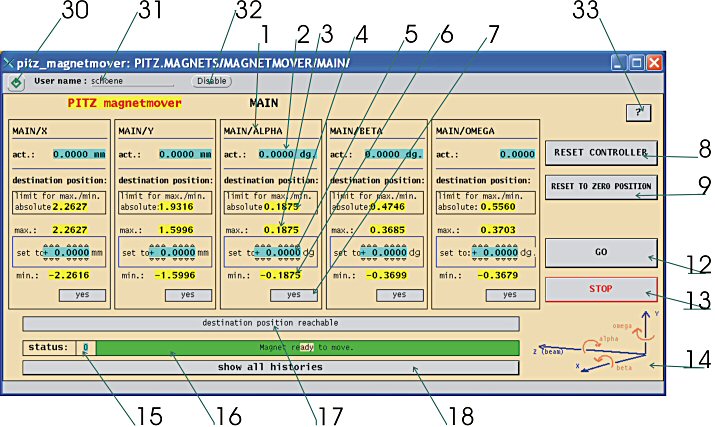

contents:
  name / task / value click double click
1 coordinate name
2 actual position of this coordinate
3 upper limit of this coordinate
4 absolute limit for max./min. of  this coordinate
5 set to value (used by GO) change the value
6 lower limit of this coordinate
7
position is reachable

yes
position is not reachable no

8 reset the controller do it
9 reset to zero position is possible:
yes

RESET TO ZERO POSITION
no RESET TO ZERO POSITION
can't reset to zero position

reset to zero pos.
nothing

12 go (make the "set to" (5) or "delta" (4)) if possible:
yes

GO
no GO
can't go (see mover status)

go
nothing

13 stop moving immediatly
14 sketch of the coordinate system
15 status value (integer)
16 status text
17
position is reachable

destination position reachable
position is not reachable destination position not reachable

18 show histories of all coordinates pitz_magnetmover_histories
30 secure sign enable user logon
31 logon user name
32 disable user logon disable user logon
33 help button this window
