pitz_magnets_top
(revised for PITZ 1.6)

Component name:	pitz_magnets_top
task:	overview of all magnets
CAF file:	pitz_magnets_top.CAF
DESY:	DESY Zeuthen
person / phone:	Bert Schoeneich / 7373
called from:	pitz
host / server:	columba SVR.PITZEPICS
Device Base Address:	PITZ.CA/MAGNETS//
comments:
problems:	1 To-do-list for restarting or starting the computer for the magnets: pitz_magnet_computer.htm

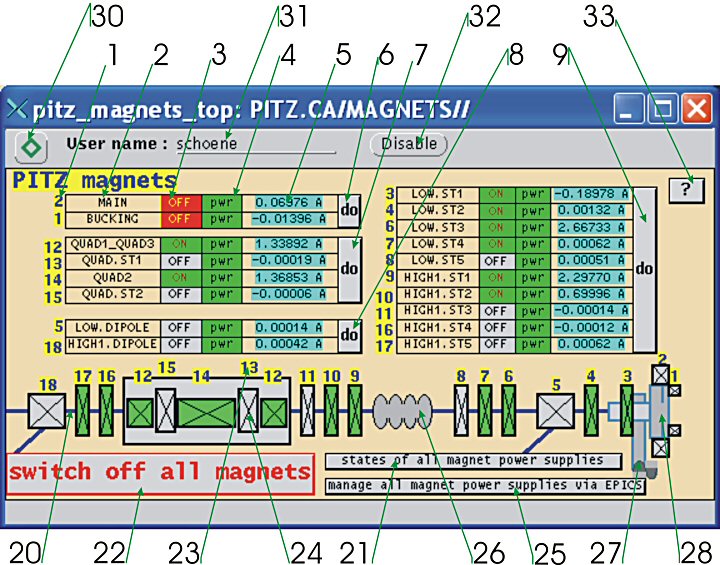

contents:	# name / task / value click double click 1 magnet number     2 magnet name     3 on/off status on black/green: ON off for main or bucking magnet yellow/red: OFF off for the magnets, which are not main or bucking black/gray: OFF     4 state of the power supply on/off switch at the power supply box in the rack room on green: pwr off gray: pwr     5 magnet current readback value     6 open window for handling the main and bucking magnet pitz_magnets_mainbuck   7 open window for handling the quads pitz_magnets_quad   8 open window for handling the dipoles pitz_magnets_dipole   9 open window for handling the steerers pitz_magnets_steerer   20 beam line     21 open window for the states of the magnets power supplies pitz_magnets_states   22 open window for switch off all magnets (set current to 0) pitz_switch_off_all_magnets   23 magnet number     24 magnet picture magnet is on green magnet is not on grey     25 manage all magnets via EPICS open EPICS window   26 booster     27 waveguide from the klystron     28 gun     30 secure sign enable user logon   31 logon user name     32 disable user name disable user logon   33 help button this window

Last modified: Februar 23, 2010 13:44 , Bert Schöneich, mailto: PITZ - webmaster
