pitz_magnetmover_histories

pitz_magnetmover_histories

Component name: pitz_magnetmover_histories
task: show the history of all coordinates of moving the main magnet
CAF file: pitz_magnetmover_histories.CAF
DESY: PITZ DESY
person / phone: Bert Schoeneich  7373 (for the gui) / Michael Winde 7378 (for the mover- and the server-software)
called from: pitz_magnetmover
host / server: pitzvme01.ifh.de / SVR.MAGMOV
Device Base Address: PITZ.MAGNETS/MAGNETMOVER/MAIN/
comments:
1 There is a detailed instruction, including error descriptions.
2 Description for a single history window: Plot_hist .
problems:
contents:

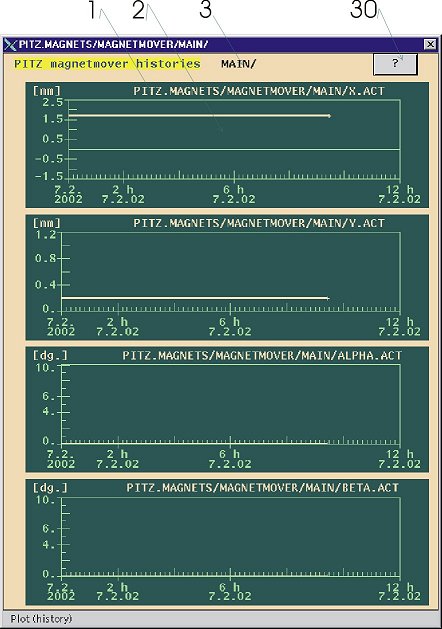

  name / task / value click double click
1 coordinate
2 history (description see: Plot_hist)
3 magnet, from which this histories come from
30 help button this window
