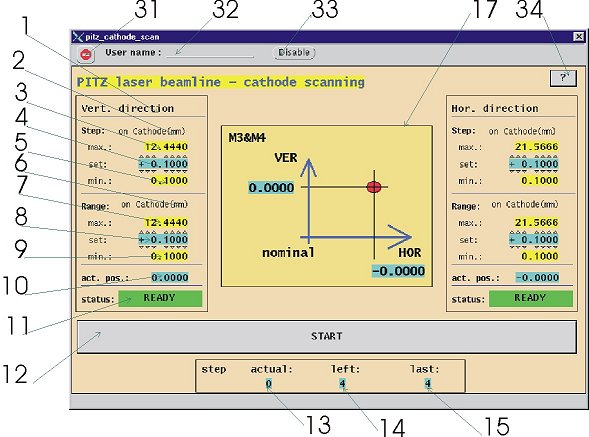

name / task / value |
click |
double click |
| 1 |
direction of scan moving (vertical or horizontal) |
|
|
| 2 |
step values are in mm |
|
|
| 3 |
max step width (upper border for 4) |
|
|
| 4 |
step width |
change the value |
|
| 5 |
min step width (lower border for 4) |
|
|
| 6 |
scan range values are in mm |
|
|
| 7 |
max scan range (upper border for 8) |
|
|
| 8 |
scan range |
change the value |
|
| 9 |
min scan range (lower border for 8) |
|
|
| 10 |
actual scan position on cahtode (in mm) |
|
|
| 11 |
status window
| all is ok |
ok |
| warnings |
show warning |
| errors |
show error |
| device is on the move |
moving |
| device is in use for scanning on the cathode |
scanning |
|
if warning or error
pitz_lbl_error
|
|
| 12 |
| ready to start the scan |
START |
| moving to the next scan position |
EMERGENCY EXIT |
| new scan position reached |
|
|
|
|
| 13 |
actual step during this scan |
|
|
| 14 |
left steps during this scan |
|
|
| 15 |
last step for this scan |
|
|
| 17 |
"This sub-window is an attempt within the limited possibilities of
DOOCS to give a graphical presentation of the scan process. It
indicates that the scanning grid is symmetrical around the nominal
position. The numbers shown with a blue underlay are identical to the
numbers shown as Actual positions." (R.Leiste) |
|
|
| 31 |
secure sign |
enable user logon |
|
| 32 |
logon user name |
|
|
| 33 |
disable user logon |
disable user logon |
|
| 30 |
help button |
this window |
|
