Component name: pitz_diagnostic_high1screen3
task: control the PITZ diagnostic device HIGH1.SCREEN3
CAF file: pitz_diagnostic_high1screen3.CAF
DESY: PITZ DESY
person / phone: Bert Schoeneich / 7373
called from: pitz2_diagnostic
host / server:
columba SVR.LOW_MS
vmepitz03 SVR.CAMERA
Device Base Address:
PITZ.FMS/LOW_MS// device - FSM-finial state machine
PITZ.DIAG/CAMERAS// camera and lamps
comments:
problems:
contents:

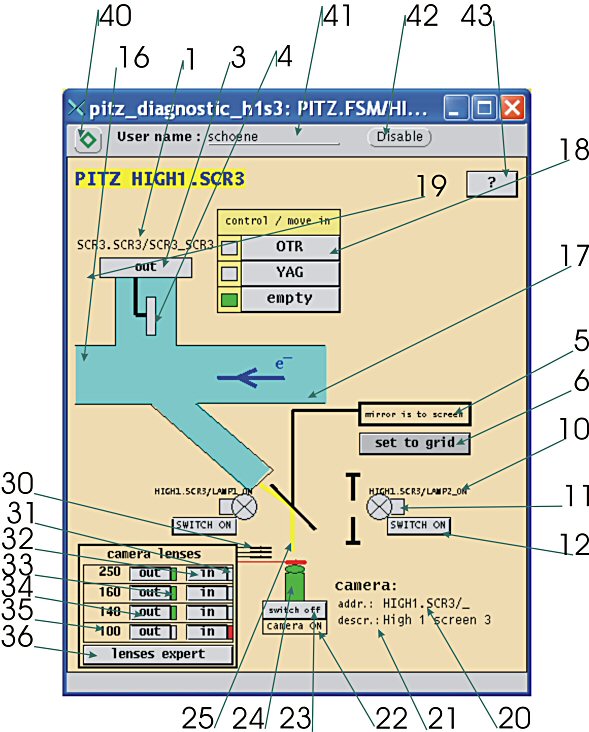

  name / task / value click double click
1 address (name) of the device
3
status window   /STATUS
device is outside the beam out 2
device is inside the beam screen in 1
device is moving  moving 4
position error position error 3
unknown  error unknown error 0

4 device
(if the device is in the beam, the picture is red with yellow background and in (!) the beam)
5 rotate mirror state (to grid or to screen)
6 rotate mirror to grid or screen
(the mirror picture is changeing depending the mirror is in direction to the grid or screen)
mirror is to grid

set to screen
mirror is to screen

set to grid
switch on or off
10 lamp address (name)
11 lamp state
lamp is on

yellow

green
lamp is off

gray

12 lamp switch
lamp is on

SWITCH OFF
lamp is off

SWITCH ON
switch on or off
16 electron beam line, dump side
17 electron beam line, cathode side
18 move the screen to one of this positions using the FSM (final state machine)
19 screen position state
on this position


not on this position



20 camera address (name)
21 camera address description
22 camera state
23 camera switch
camera is on

SWITCH OFF
camera is off

SWITCH ON
switch on or off
24 camera state
camera is on

green
camera is off

gray

25 rotating mirror
(this picture is changing, depends on the direction to grid or screen)
30 lens state
lens is in

red
lens is out

black

31 lens button "in" state
lens is set to in

red
lens is not set to in

gray

32 set lens in the beam to the camera set lens in
33 lens button "out" state
lens is set to out

green
lens is not set to out

gray

34 set lens out of  the beam to the camera set lens out
35 lens value
36 lenses expert window pitz_lenses_expert
40 secure sign enable user logon
41 logon user name
42 disable user logon disable user logon
43 help button this window
