pitz_lenses_expert
 (revised for PITZ 1.6)

pitz2_lenses_expert

Component name: pitz2_lenses_expert
task: handle, control and show all lenses in a list
CAF file: pitz_lenses_expert.CAF
DESY: PITZ DESY
person / phone: Bert Schoeneich / 7373
called from: pitz_diagnostic_high1screen3.html
host / server: gallus.ifh.de / SVR.DEV2ST
Device Base Address: PITZ.DIAG/DEV2ST/
comments:
problems: If there are white rectangles in the record of one lens, this lens isn't connected to DOOCS and the gui.

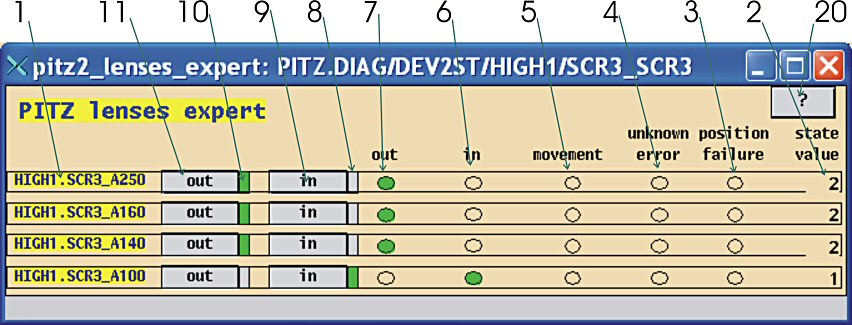

contents:
# name / task / value click -  window double click - window
1 lens names
2 lens status value (integer)
3 position failure indicator (green if happen)
4 unknown error indicator (green if happen)
5 lens in movement indicator (green if happen)
6 lens in indicator (green if happen)
7 lens out indicator (green if happen)
8 lens button "in" state
lens is set to in

red
lens is not set to in

gray

9 set lens in the beam to the camera set lens in
10 lens button "out" state
lens is set to out

green
lens is not set to out

gray

11 set lens out of  the beam to the camera set lens out
20 help button this window
