| Component name: |
pitz_camera_grabber |
| task: |
managing PITZ cameras |
| CAF file: |
pitz_camera_grabber.CAF |
| DESY: |
DESY Zeuthen |
| person / phone: |
Bert Schoeneich / 7373 |
| called from: |
pitz_diagnostic |
| host / server: |
vmepitz03.ifh.de / SVR.DEV2ST |
| Device Base Address: |
PITZ.DIAG/DEV2ST// |
| comments: |
from Stefan Weisse (sweisse@ifh.de):

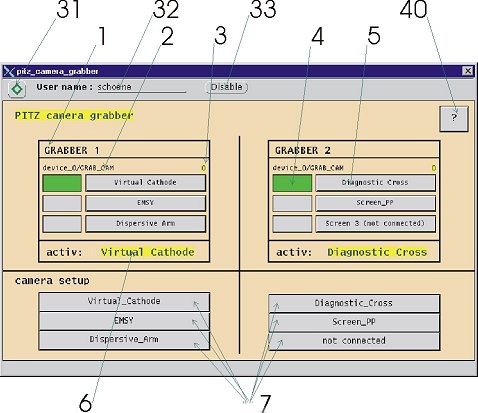

| This control can be used to access the frame grabber
servers. |
| Using the upper section you can switch the active
camera of each grabber to be able to grab frames from this camera.
Also you can read out which camera is selected by looking for the
green field or the string behind "active". |
| The lower section of the control, namely "camera
setup" can be used to open and modify the camera properties of
the desired camera. Please click on "contents: 7: camera setup:
pitz_camera_setup" to get a more detailed documentation of the
camera setup dialog. |
|
| problems: |
|
| contents: |
| # |
name / task / value |
click |
double click |
| 1 |
grabber name |
|
|
| 2 |
grabber selection property name |
|
|
| 3 |
grabber selection property value |
|
|
| 4 |
active camera by this grabber
(only one camera can be activ in a grabber)
| camera activ |
green |
| camera not activ |
grey |
|
|
|
| 5 |
camera name |
|
|
| 6 |
activ camera name |
|
|
| 7 |
camera setup |
pitz_camera_setup |
|
| 31 |
secure sign |
enable user logon |
|
| 32 |
logon user name |
|
|
| 33 |
disable user name |
disable user logon |
|
| 40 |
help button |
show this window |
|
|
