Component name: pitz2_aperture
task: laser beamline: aperture handling
CAF file: pitz2_aperture.CAF
DESY: PITZ DESY
person / phone: Bert Schoeneich / 7373
called from: pitz2_laser_beamline
host / server: vmepitz06 / SVR.LBL
Device Base Address: PITZ.LBL/
comments:
problems:
documents:
contents:

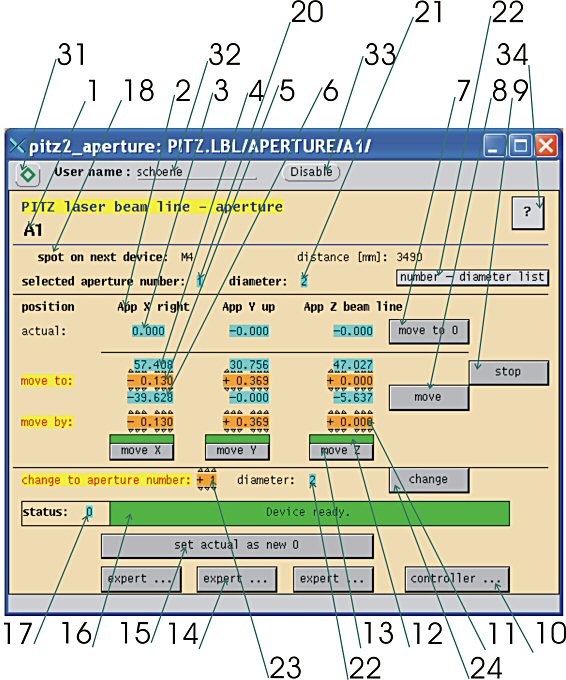

  name / task / value click double click
1 name of the device (also DOOCS address)
2 coordinate
3 actual value of the coordinate
4 limit max. of the coordinate
5 set value for moving coordinate TO a value change the value
6 limit min. of the coordinate
7 move all coordinates to zero position do it
8 move all coordinates to set (see point 5 or 11) position do it
9 stop moving do it
10 open window for all devices sorted by controllers pitz2_micos_controller
11 set value for moving coordinate BY a value change the value
12 state of the moving device for this coordinate
ok green
error red

13 move this coordinate to set (see point 5 or 11) position do it
14 open expert window for this coordinate pitz2_mirror_expert
15 set the actual positions as new zero position set it
16 state and state text of the moving device for all coordinates
ok green
error red

17 state number of the moving device for all coordinates
18 next device information (name and distance)
20 selected beam shaping aperture - number
21 selected beam shaping aperture - diameter
22 list of all aperture with number and diameter pitz2_aperture_list
23 change to beam shaping aperture by number set number
24 change to beam shaping aperture by number do it
31 secure sign enable user logon
32 logon user name
33 disable user logon disable user logon
34 help button this window
