pitz2_mirror_expert
(revised for PITZ 1.6)

pitz2_mirror_expert

Component name: pitz2_mirror_expert
task: laser beamline: expert window for one coordinate one motor of a device
CAF file: pitz2_mirror_expert.CAF
DESY: PITZ DESY
person / phone: Michael Winde / 7378
called from: pitz2_mirror
host / server: vmepitz06
Device Base Address: PITZ.LBL///
comments: There are 2 coordinate systems with all optical devices of the laser beam line:

1.

 the "absolute" position, defined by the middle witch (light ...) of each device. This will be used by experts only.

2.

 the "relative" position. This will usually be used. An expert defines the "relative 0" position ("0" of the relative position) the button [16].
problems:
documents: http://www-zeuthen.desy.de/pitz/control_doc/lbl/lbl_expert.shtml
http://www-zeuthen.desy.de/pitz/control_doc/lbl/lbl_shift.shtml

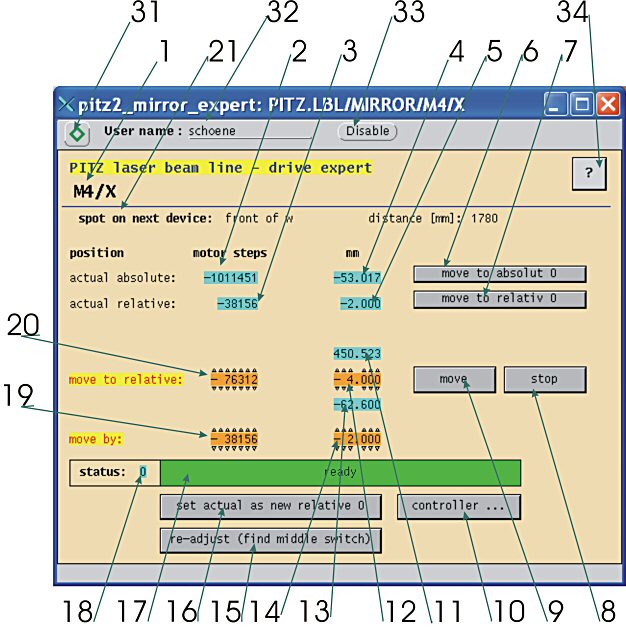

contents:
  name / task / value click double click
1 name of the device and coordinate (also DOOCS address)
2 actuel absolute position (in motor steps)
3 actuel relative position (in motor steps), see [16]
4 actuel absolute position (in mm)
5 actual relative position (in mm), see [16]
6 move to absolute zero position do it
7 move to relative zero position, see [16] do it
8 stop moving immediately do it
9 move to the position specified at [12], [14], [19], [20] do it
10 open the controller window pitz2_micos_controller
11 upper limit for [12]
12 specify the target position for the next move
(in mm, relative to 'relative 0', for 'relative 0' see [16])
If you change this value, values [14], [19], [20] will be changed by the server accordingly. No movement will take place until you press the move button [9].		 change the value
13 lower limit for [12]
14 specify the target position for the next move
(in mm, relative to the actual postion)		 change the value
15 readjust (find middle switch) do it
16 set the actual relative position as new relative zero position
(see [comments] above)		 set it
17 state and state text of the moving device for all coordinates
ok green
error red

18 state number of the moving device:
0 OK and ready
< 0 error
> 0 moving or target position not reachable

19 specify the target position for the next move
(in motor steps, relative to the actual postion)		 change the value
20 specify the target position for the next move
(in motor steps, relative to 'relative 0', for 'relative 0' see [16])
If you change this value, values [14], [19], [20] will be changed by the server accordingly. No movement will take place until you press the move button [9].		 change the value
21 next device information (name and distance)
31 secure sign enable user logon
32 logon user name
33 disable user logon disable user logon
34 help button this window
