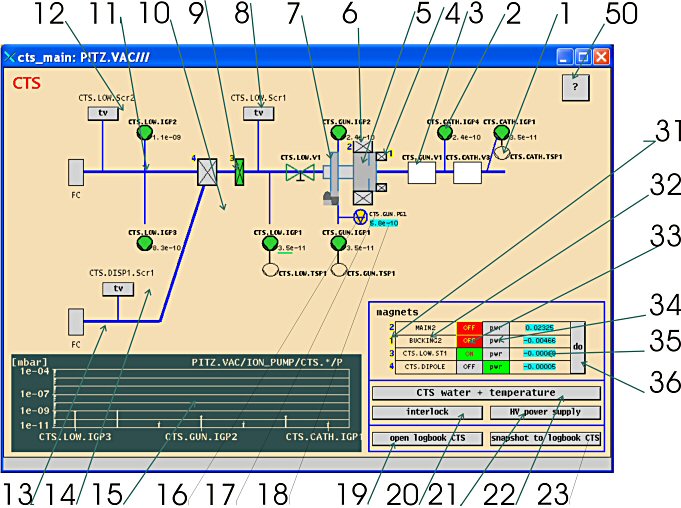

name / task / value |
click |
double click |
| 1 |
titan sublimation pump |
tsp_win |
|
| 2 |
ion pump |
ion_pump_win |
|
| 3 |
valve
| open |
|
| close |
| red: |
outlines and inner
circles |
|
|
|
|
| 4 |
bucking magnet |
|
|
| 5 |
gun |
|
|
| 6 |
main magnet |
|
|
| 7 |
waveguide from the clystron |
|
|
| 8 |
screen CTS.LOW.SCR1 - diagnostic facilities |
|
|
| 9 |
dipol magnet |
|
|
| 10 |
electron beam line - dispersiv arm |
|
|
| 11 |
electron beam line |
|
|
| 12 |
screen CTS.LOW.SCR2 - diagnostic facilities |
|
|
| 13 |
faraday cup |
|
|
| 14 |
screen CTS.DISP1.SCR1 - diagnostic facilities |
|
|
| 15 |
current pressure of all pumps |
click on the pump name -> see the time-depending
pressure of this pump |
|
| 16 |
pressure gauge |
|
|
| 17 |
pressure gauge DOOCS address |
|
|
| 18 |
pressure gauge pressure value
| gauge at the system |
| blue / black: |
pressure value |
|
| gauge not at the system |
|
|
history |
|
| 19 |
CTS logbook |
open it |
|
| 20 |
interlock window, open it |
pitz_interlock |
|
| 21 |
high voltage management window (see above "comments") |
HVC_MAIN.CAF |
|
| 22 |
water and temperature window |
cts_gun_water.CAF |
|
| 23 |
snapshot of a CTS gui window to the CTS logbook as jpg
file |
do it |
|
| 31 |
magnet number |
|
|
| 32 |
magnet name |
|
|
| 33 |
on/off status
| on |
|
| off for main or bucking magnet |
|
| off for the magnets, which are not
main or bucking |
|
|
|
|
| 34 |
state of the power supply on/off switch at the power
supply box in the rack room
|
|
|
| 35 |
magnet current readback value |
|
|
| 36 |
open window for handling the magnets |
cts_magnets |
|
| 50 |
help button |
this window |
|
mailto:
PITZ - webmaster
