cts_magnets

Component name:	cts_magnets
task:	handle the cts magnets
CAF file:	cts_magnets.CAF
DESY:	DESY Zeuthen
person / phone:	Bert Schoeneich / 7373
called from:	cts_main
host / server:	columba SVR.PITZEPICS
Device Base Address:	PITZ.CA/MAGNETS/CTS.*/
comments:
problems:	1 To-do-list for restarting or starting the computer for the magnets: pitz_magnet_computer.htm

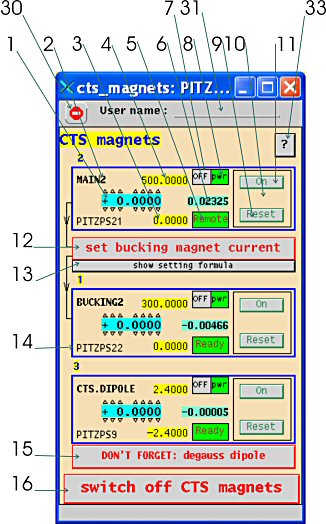

contents:	# name / task / value click double click 1 magnet current set it   2 DOOCS address of the magnet     3 logical lower limit (max lower limit of magnet current and power supply)     4 logical upper limit (min upper limit of magnet current and power supply)     5 local/remote status remote green: REMOTE local yellow: LOCAL     6 magnet current readback value     7 on/off status on black/green: ON off for main or bucking magnet yellow/red: OFF off for the magnets, which are not main or bucking black/gray: OFF     8 state of the power supply on/off switch at the power supply box in the rack room on green: pwr off gray: pwr     9 reset magnet values do it   10 switch off magnet (dimmed, if magnet is off) do it   11 switch on magnet (dimmed, if magnet is on) do it   12 set bucking magnet current as a function of the main magnet current and the  distance between the two magnets (perlscript cts_mainbuck)   13 show the actual formula for setting the current of the bucking magnet as function of the current of the main magent net/corvus/doocs/bin/cts_mainbuck     14 power supply name     15 open window for degaussing the dipole cts_magnet_dipole_degauss   16 open window for switch off all magnets (set current to 0) cts_switch_off_all_magnets   30 secure sign enable user logon   31 logon user name     33 help button this window
