tsp_win

tsp_win

Component name: tsp_win
task: titan sublimation pump control
CAF file: tsp_win.CAF
DESY: TTF Hamburg
person / phone: -
called from: pitz_gun_vac
host / server: vmepitz03 / SVR.TSP
Device Base Address: PITZ.VAC/TSP/
comments:

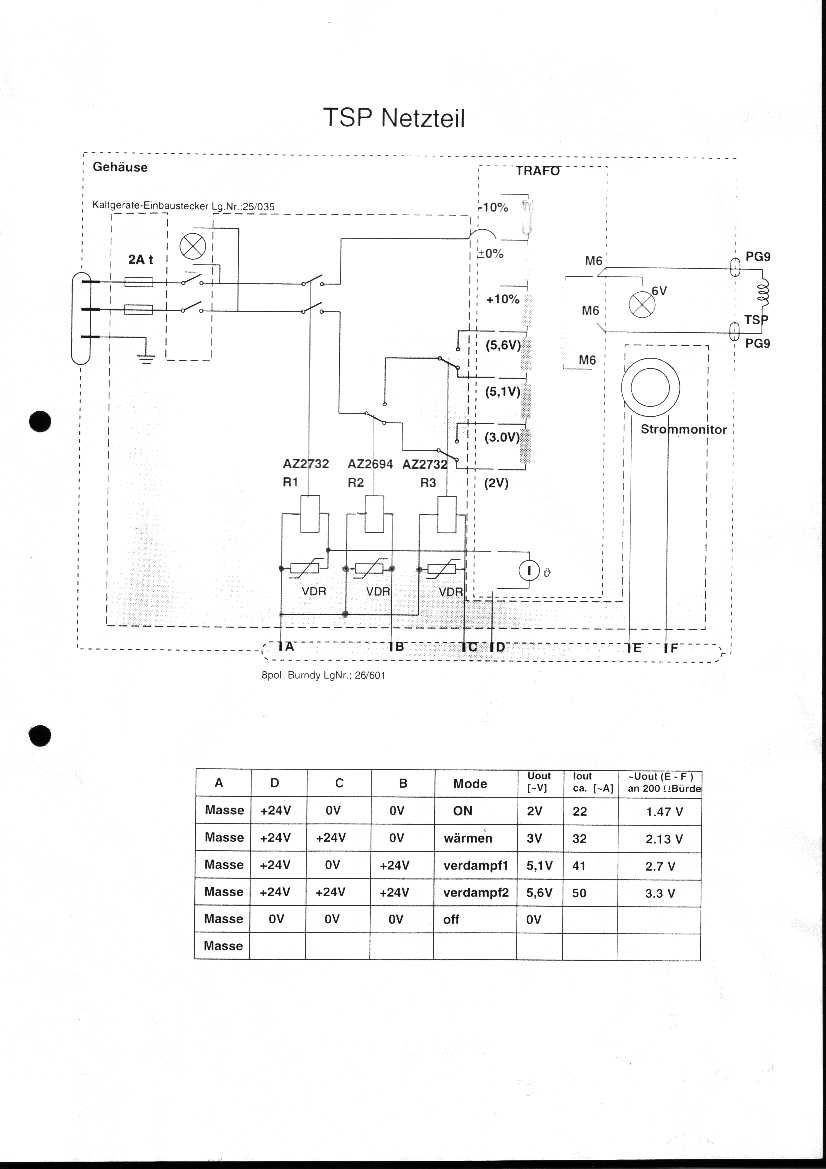

data sheet and description: tsp_pump.jpg / tsp_pump.pdf
problems:
contents:

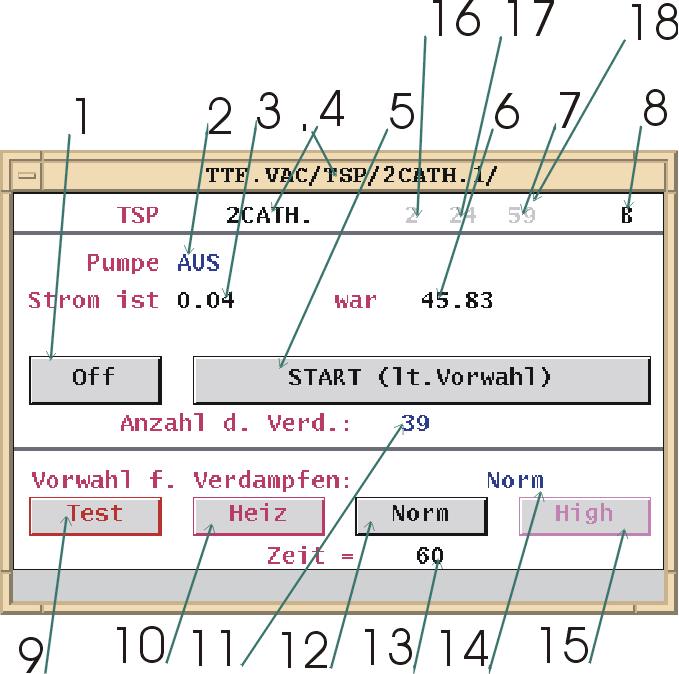

# name / task / value click -  window double click - window
1 switch pump off
2 pump status on or off (EIN/AUS)
3 pump current - is
4 Device Base Address
5 switch pump on
6 pump current - was history
7 SEDAC addresses (seee 16/17/18 below)
8 heatwire
9 pre-select kind of evaporation TEST
10 pre-select kind of evaporation HEATING
11 count evaporations cycles
12 pre-select kind of evaporation LOW_VOLTAGE
13 pump running seconds (count down) u_int_slider_win
14 kind of evaporation
15 pre-select kind of evaporation HIGH_VOLTAGE
16 SEDAC addresses: bus number
17 SEDAC addresses: controller number
18 SEDAC addresses: modul address
