VME/VXI -POWER SUPPLY UEP 5021

 LOw Noise

The UEP 5021 series is a very high density, high sophisticated single-phase power supply for up to 8 independant outputs designed in low noise W-Ie-Ne-R - Cavity VHF-switching technology with excellent RF-shielding. This technology features strong reduced periodic and random distortions. Output power up to 3000W.

UEP5021 - 1

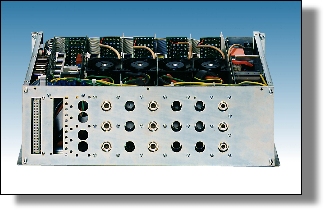

UEP 5021 power supply with multiple power pin connector board (opened 3 U box)

Housing includes: mains filter, softstart circuit, auxiliary power supply, regulator-monitoring- and alarm-circuit supported by a self calibrating microprocessor system.
This power supply is equipped with the enhanced multiple high power connector board (up to 400A for + and -5V, 200A for -2V and +3.3V, 80A for other voltages).

In case of malfunction the primary switching circuits cut off by the processor (DC-off function).

High MTBF-values are achieved by optimized thermal-balance of critical parts und the use of long life DC fans. The UEP5021 housing consist of a steel-aluminium construction.

The 5021 power supply meets the CE requierments fully.

Weight: 10kg for 3U (with 5 modules),18kg for 6U (with 9 modules).

UEP5021 - 2

UEP 5021 power supply from rear side (opened 6 U box)

Options:

Mains input with auto range and / or power factor correction, necessary for CE mark.;

Mains input
A, D (Standard): 186...260VAC 47-63Hz, 400Hz on request
B, F (optional, auto range): 94...136VAC/186...264VAC 47-63Hz, 400Hz on request
C (optional, sinusoidal) CE: EN 60555, IEC 555 pow. fact. 0,95 (230VAC), 92...264VAC, 10/20A
Inrush current: limited by softstart-circuit, max 20A/30A
Isolation Inp.-outp. CE : EN 60950, ISO 380, VDE 0805, UL 1950, C22.2.950
Regulation static:
2V, 3.3V, 5V <25mV (+/-100% load, +/-15% mains)
12V,24V (10/6,5A): <0,1% (+/-100% load, +/-15% mains)
dynamic :
2V, 3.3V, 5V <100mV (+/-25% load)
12V,24V (10/6,5A): <0,7% (+/-25% load)
Recovery time :
+/-25% load within +-1% within +-0,1%
2V, 3.3V, 5V 0,2ms 0,5ms
12V,24V (10/6,5A) 0,0ms 1,0ms
Sense compens.range: min. 0,5V
Noise and ripple: < 15mVpp, typical <10mVpp (0-20MHz ) 3mVrms (0-2MHz)

EMI
RFI-rejection (emission) CE: EN 50081-1 VDE 0871B, Mains inp. C or E otherwise EN 50081-2
EMC (immunity) CE: EN 50082-1 or 2
Operation temperature: 0....50·C without derating
Storage: -30°C up to 85°C
Temp.-coefficient: < 0,2% / 10K
Stability (const. conditions): 10mV or 0,1% within 24 hours
50mV or 1,0% within 6 month
Current limits:

15% of rated current-values, adjustable to any lower level (via fan tray switches or netware). Mains fuse can open in case of continuously overpowering!
Voltage rise characteristics:

monotonic 50ms, processor ontrolled. Complementary outputs withdual tracking
Overvoltage crow bar protection: trip off adjusted to 125% of nominal voltage each output
DC Off (trip off): within 5ms if >2% deviation from adjusted nominal values, after overload, overheat, overvoltage, undervoltage (bad status) and fan fail, output capacitors will be discharged by the crow bars temperatur limits 110°C heat sink, 70°C ambient, trip off points adjustable, processor controlled.
Efficiency: 75% 2V/ -83% 5V/ -85% 12V and 15V-modules
M T B F, 40°C ambient temperature: >65 000 h (UEL 4020 EC fan tray >45 000h)

AC Mains / Fuse
3 U Box 6 U Box
Input type max. 5 power modules (<1,5kW) max. 10 power modules (>1,5kW)
B / F (Auto range input): 20A fuse 900W/1800W 2 x 20A 2kW/ >3kW (>100/200VAC)
C / E (Sinusoidal input): 10A fuse 900W/2000W 2 x 10A >3kW
D (Standard input): 10A fuse 1000W
A / G: 15A breaker 1.5 kW 2 x 15A / 3kW

Available modules

.

+5,0V 100A max. 500A (5+5 modules)
-5,2V 100A
+3.3V 100A max.

200A (2 modules)
-2,0V 50 (100)A
+12V 6/10A -12V 6/10A each max. 10A
+15V 6/10A -15V 6/10A each max. 10A
+12V or -12V 40A -12V 40A each max. 80A (2+2 modules)
+15V 30A -15V 30A each max.

60A (2+2 modules)
