rfinf_tune

rfinf_tune

Component name: rfinf_tune
task: to tune a ADC
CAF file: rfinf_tune.CAF
DESY: PITZ DESY
person / phone: Petrosyan, Bagrat 1L/46 7255
called from: pitz_water_expert , pitz_water_win and other windows
host / server:
Device Base Address: PITZ.RF/FASTADC//
comments:
1 for questions and remarks ask Petrosyan, Bagrat 1L/46 PITZ 7255
problems:

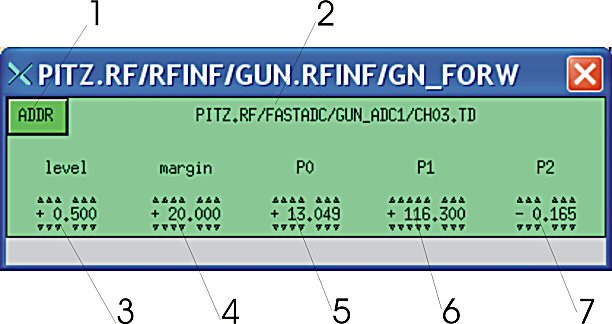

contents:
  name / task / value click double click
1 modify the DOOCS address of an ADC change the value
2 DOOCS address of an ADC channel
3 threshold to find the start and the end of a puls change the value
4 margin for the start and the end point of a puls change the value
5 parabolic fit constant of power given in V in dBm change the value
6 parabolic fit constant of power given in V in dBm change the value
7 parabolic fit constant of power given in V in dBm change the value
