PITZ - Photo Injector Test Facility - graphical user interface - documentation (DESY Zeuthen)
(table of contents v3.078)
Last modified: 23.02.2010 13:44:12

pitz_watchdog_ill
(revised for PITZ 1.6)

pitz_watchdog_ill

Component name: pitz_watchdog_ill
task: overview window for problematic PITZ-servers
CAF file: pitz_watchdog_ill.CAF
DESY: PITZ Zeuthen
person / phone: Bert Schöneich / 7373
called from: pitz_customize
host / server: -
Device Base Address: WATCHDOG///
comments:
DOOCS Watchdog Server documentation DOOCSWatchdogServer.html
PITZ Watchdog Server documentation PITZWatchdogServer.html
problems:
1. If a computer isn't available you see in red the text "ill. service" or "unavailable srv". The name of this unavailable computer you can see in the bottom of the window by moving the mouse cursor over the button "system" (not clicking!).
2. restart a computer in the following way:
1 go to the computer -> pitzvme01
2 login as root >su root
3 force to write data files to disk >sync
2 reboot with check options >reboot -- -r

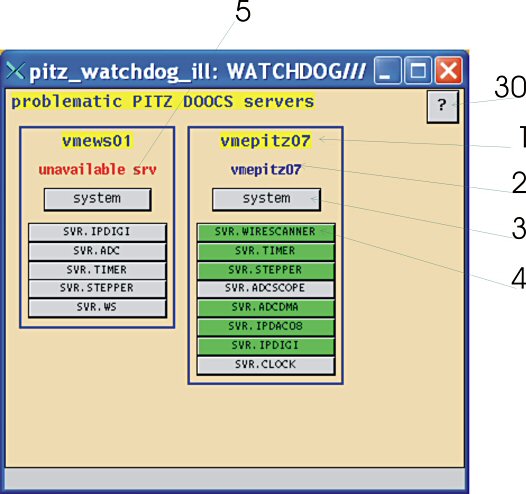

contents:
# name / task / value click double click
1 name of the computer
(visible every time)
2 name of the computer
(visible only if the computer is ok, if not see "problems 1" above)
3 system system and disk informations
4 server name
server is ok

server name
server offline

server name
server in error

ill. service / unavailable srv
server gui
5 server currently not available
 (see "problems 1" above)
30 help button this window


Last modified: Februar 23, 2010 13:44 , Bert Schöneich, mailmailto: PITZ - webmaster
