watchdog_sys_disk

watchdog_sys_disk

Component name: watchdog_sys_disk
task: show system and disk values for a computer
CAF file: watchdog_sys_disk.CAF
DESY: TTF Hamburg
person / phone:
called from: many other windows
host / server: -
Device Base Address: ///  (example: WATCHDOG/VMEULTRA1//)
comments:
problems:

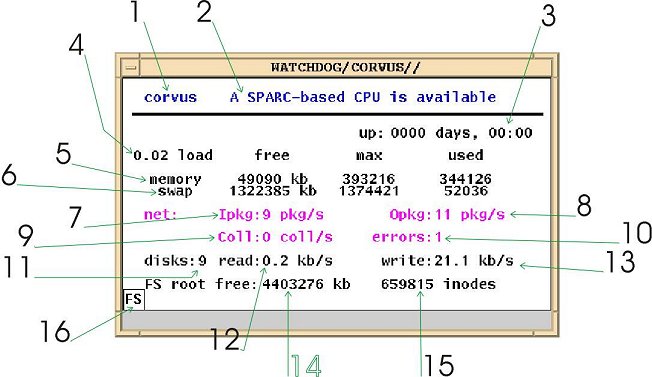

contents:
# name / task / value click -  window double click - window
1 name of the computer
  2 kind of CPU
3 time since the computer is up and  running
4 system load of the computer history
5 memory values  free: history
6 system swap values  free: history
7 net: IP - input package per second history
8 net: IP - output package per second history
9 net: collisions per seconds history
10 net: error count
11 number of disks
12 disk: read speed average history
13 disk: write speed average history
14 filesystem: free kbyte this computer history
15 filesystem: free inodes history
16 button: filesystem: free kbyte all computers history
