pitz_valves
 (revised for PITZ 1.6)

pitz_valves

Component name: pitz_valves
task: handle, control and show all valves in a list
CAF file: pitz_valves.CAF
DESY: PITZ DESY
person / phone: Bert Schoeneich / 7373
called from: pitz2_vac
host / server: gallus / SVR.DEV2ST
Device Base Address: PITZ.VAC/DEV2ST/*/
comments:
problems:
contents:

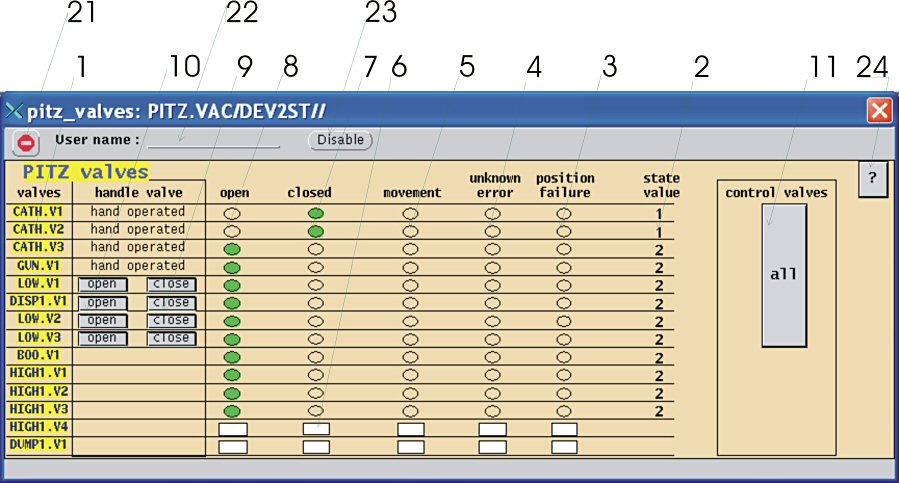

# name / task / value click -  window double click - window
1 valve names
2 valve status value (integer)
3 position failure indicator (green if happen)
4 unknown error indicator (green if happen)
5 valve in movement indicator (green if happen)
6 If there are white rectangles in the record of one valve, this valve isn't connected to DOOCS and the gui.
8 valve close indicator (green if happen)
8 valve open indicator (green if happen)
9 close button (only if the valve has a remote control) close the valve
10 open button (only if the valve has a remote control) open the valve
11 open valve control window (page under development)
21 secure sign enable user logon
22 logon user name
23 disable user logon disable user logon
24 help button this window
