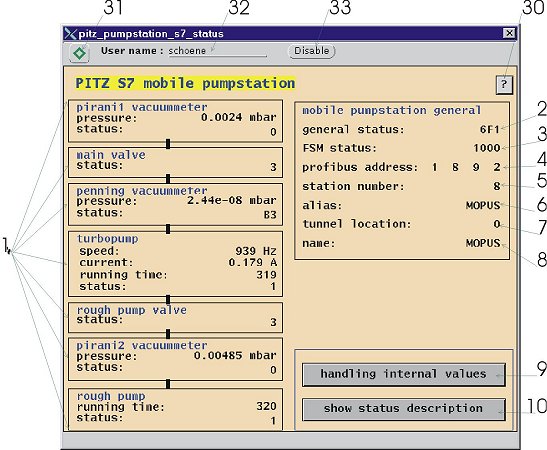

name / task / value |
click |
double click |
| 1 |
pumpstation components and their values (self-explanatory) |
history (not for all values) |
|
| 2 |
general status of the pump station |
|
|
| 3 |
FSM status (state of the finite state machine inside the sps) |
|
|
| 4 |
profibus address (inside the server),
from left to right: line - address of the pump station -
LSAP (Local Service Access Point) - access mode |
|
|
| 5 |
station number reported by the sps
(has to be equal to Teilnehmernummer (4)) |
|
|
| 6 |
alias (inside doocs) |
|
|
| 7 |
tunnel location (number comes from the tunnel outlet
(Hallendose)) |
|
|
| 8 |
name of the location inside the tunnel
(set to tunnel outlet if connected, otherwise set to ALIAS (6)) |
|
|
| 9 |
handling pumpstation internal values for experts |
handling window |
|
| 10 |
description of the status values |
description
(web) |
|
| 30 |
help button |
this window |
|
| 31 |
secure sign |
enable user logon |
|
| 32 |
logon user name |
|
|
| 33 |
disable user name |
disable user logon |
|
