pitz_laser_inhibit

pitz_pitz_laser_inhibit

Component name: pitz_laser_inhibit
task: show and manage the bits of the laser  inhibit system
CAF file: pitz_laser_inhibit.CAF
DESY: PITZ DESY
person / phone: Bert Schoeneich / 7373
called from: pitz
host / server:
Device Base Address:
comments:
1 bit description:
Mario Pohl's WORD - docu
problems:
contents:

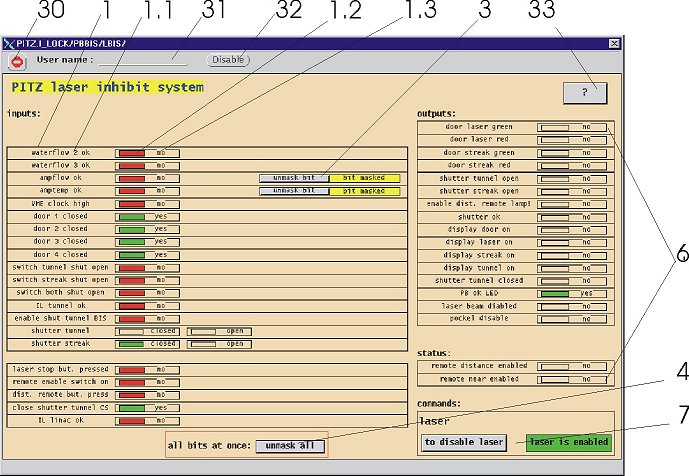

  name / task / value click double click
1 bit with yes/no flip flop status
1.1 bit name / description
1.2 bit status
bit is ok
bit  is not ok

1.3 bit status description
3  mask the bit
bit is unmasked

mask bit


bit is masked

unmask bit

bit masked
mask/unmask the bit
4 unmask all bits at once unmask all bits at once
6 bit with on/off  flip flop status
6.1 bit name / description
6.2 bit status
bit is on
bit is off

6.3 bit status description
7 enable the beam
beam is enabled to disable beam beam is enabled
beam is disabled to enable beam beam is disabled
enable/disable the beam
30 secure sign enable user logon
31 logon user name
32 disable user logon  disable user logon
33 help button this window
