NIM / CAMAC POWER SUPPLY UEP/CEP 10 (M)

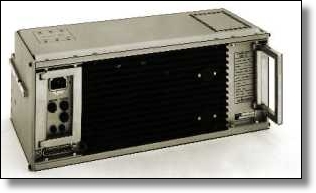

The UEP 10 series is a plug-in power supply for use in NIM and CAMAC with 500W power output.
The lowest noise linear regulated power supply is equipped with a cut-off protection for overload, over- / and undervoltage and overtemperature failures.
Optional it can be prepared with alarming and monitoring facilities according to CERN CAMAC Note 46-04. This UEP 10M is equipped with a control- and monitoring connector (15-pin sub-D / PG 27+28) for Status output ("good" when all DC-voltages within tolerance level), rearming input, power fail signal, alarms for overload and overtemperature, voltage and current monitor outputs.

The CEP 10 is the CE conform version with improved AC wiring.
Dimensions: width 429 mm, height 172 mm, depth 215 mm,
Weight: 17,6 kg

UEP10

Mains Input : 100 +/-10% / 115 / 230 VAC +10-15%, 48 - 63 Hz
Inrush current: limited to < 15A, 30A /115V
mains filter, fuse protection
Derating: full power at 50°C, derating 2 %/K up to 60°C
Regulation:
load 10 to 100% Uout < 0,05%
line +/-10 Uout < 0,02%
Recovery time : load change 10 % to 100%: < 0,15ms
Sense compens.range: min. 0,5V
Noise and ripple: full load < 0,6mVeff, < 3mVpp,
at 80% rated power <1mVpp
Temperature error: < 2*10-4 /K
Thermal protection: overheating protection by thermal switches(3 fold)
Current characteristics: current limit adjusted to 115% rated current, adjusting range +/- 20 %,
short circuit protected by fold back characteristic,
short circuit current < 3A, reverse bias diodes.
Voltage characteristics: calibration range +/- 5 % rated voltage,
dual tracking for all +/-DC-Outputs, overvoltage protection (crow bar)
Type +6V -6V +12V -12V +24V -24V 115VAC
UEP 10 / 10M
500W		 40A 40A 4A 4A 4A 4A 0.5A
max. 60A max. 8A max. 8A
CEP 10 / 10M
500W, CE conform		 40A 40A 4A 4A 4A 4A -
max. 60A max. 8A max. 8A
