| Component name: |
xerror |
| task: |
graphical user interface for showing errors which comming
from servers |
| CAF file: |
- |
| DESY: |
TTF Hamburg |
| person / phone: |
- |
| called from: |
user |
| server: |
- |
| Device Base Address: |
|
| comments: |
| 1. |
Using outside the pitz gui! |
| 2. |
Start the view of a special PITZ-part with a script like xerror_pivac. |
| 3. |
The property "SVR.ERRORMASK" of the watched server has
to be .false. ("0"). |
| 4. |
Set the property "SVR.ERRORLOG" of the watched server to
the name of the history-file. |
|
| problems: |
| 1. |
In the moment the history-file of xerror_vac is on a remote hard
disk. That may be in the future a bottle neck. |
| 2. |
Summary of the current
situation of xerror_vac (flags, history file). |
|

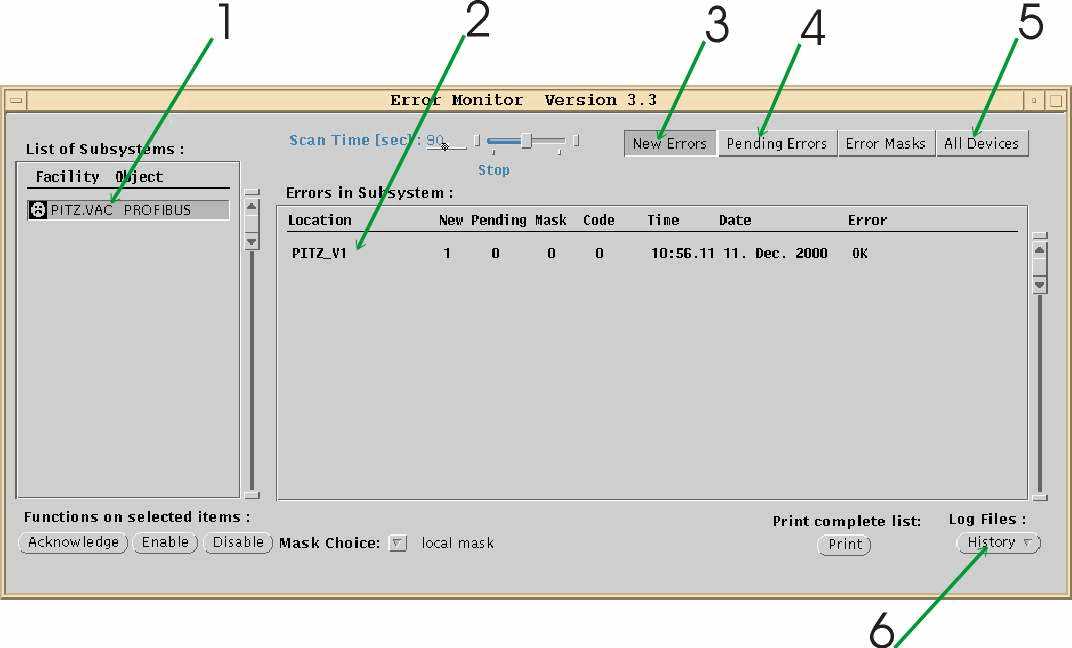

| contents: |
| # |
name / task / value |
click - window |
double click - window |
| 1 |
subsystems of PITZ |
|
|
| 2 |
location inside the subsystem where an error occurred |
|
|
| 3 |
see new errors |
|
|
| 4 |
see pending errors |
|
|
| 5 |
see all devices of the server regardless is there an error or not |
|
|
| 6 |
see the error-history file of the server |
|
|
|
