Component name: pitz_shift
task: show important values for the shift takers (and manage some of them)
CAF file: pitz_shift.CAF
DESY: PITZ DESY
person / phone: Bert Schoeneich / 7373
called from: pitz
host / server:  /
Device Base Address: ///
comments:
problems:
contents:

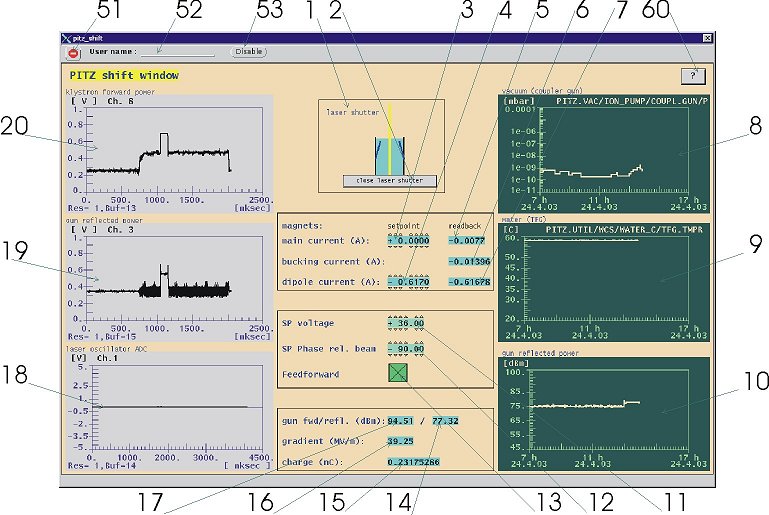

  name / task / value click double click
1 laser shutter (show the close and the open state in different pictures)
2 laser shutter set open or close
3 main magnet current set change the value
4 dipole magnet current set change the value
5 main magnet current readback value
6 bucking magnet current readback value
7 dipole magnet current readback value
8 coupler gun vacuum history history
9 water temperature history history
10 gun reflected power history history
11 set point voltage RF amplitude change the value
12 set point phase RF relativ to the beam change the value
13 RF to the gun:
yes

green
no

grey

14 gun reflected power
15 charge on the faraday cup in the diagnostic cross
16 calculated gradient at the cathode
17 gun forward power
18 laser oscillator ADC spectrum
19 gun reflected power spectrum
20 klystron forward power spectrum
51 secure sign enable user logon
52 logon user name
53 disable user logon disable user logon
60 help button this window
