Component name:	pitz_pumpstation_win
task:	SPS S5 mobile pump station control
CAF file:	pitz_pumpstation_win.CAF
DESY:	PITZ Zeuthen
person / phone:	Bert Schöneich / 7373 (using pb_pumpstation_win.CAF / TTF Hamburg)
called from:	pitz_gun_vac, pitz_pumpstation_parking
host / server:	pitzvme01.ifh.de / SVR.PB
Device Base Address:	PITZ.VAC/PROFIBUS/PITZ_V1/
comments:	1 If there is no pumpstation in the position, all values in the window are white. 2 There is a green arrow under the green rectangel, if a permit is given for this valve (MV.PERMIT). 3 doocs addresses in the old S5-pumpstation : S5_pumpstation.pdf / S57_pumpstation.txt
problems:

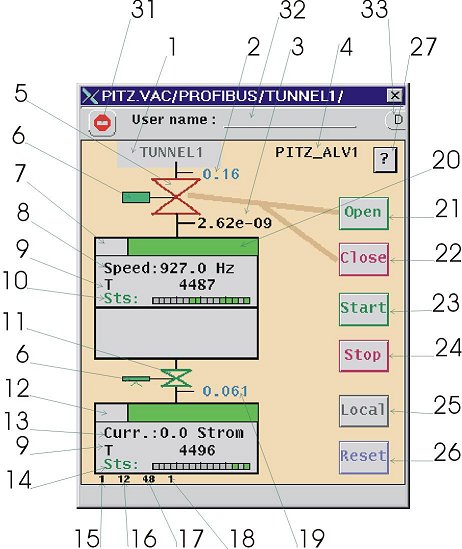

contents:	# name / task / value click -  window double click - window 1 location inside the building (depending of the box where the punpstation is connected)     2 Pirani1 pressure history   3 Penning pressure history   4 location inside PITZ     5 main valve     6 compressed air reservoir (see comment 2)     7 turbo pump     8 rotation speed turbo pump history   9 time duration of operation history (seems to be senseless)   10 turbo pump profibus status word     11 roughing pump valve     12 roughing pump     13 current roughing pump (seems never show a current value, always 0) history   14 roughing pump profibus status word     15 Profibus address: line     16 Profibus address: address of the pump station     17 Profibus address: Teilnehmernummer (max.)     18 Profibus address: access mode     19 Pirani2 pressure history   20 show pump motor current pb_tpstrom_win   21 open the main valve     22 close the main valve     23 start the whole mobile pump station     24 stop the whole mobile pump station     25 to use the punpstation in local mode     26 error reset     27 help button this window   31 secure sign enable user logon   32 logon user name     33 disable user name disable user logon

Last modified: Februar 23, 2010 13:44 , Bert Schöneich, mailto: PITZ - webmaster
