PITZ - Photo Injector Test Facility - graphical user interface - documentation (DESY Zeuthen)
(table of contents v3.078)
Last modified: 23.02.2010 13:44:12

pitz_other_alarms
(revised for PITZ 1.5)

pitz_other_alarms

Component name: pitz_other_alarms
task: show the detailed status of all other alarms
CAF file: pitz_other_alarms.CAF
DESY: PITZ DESY
person / phone: Bert Schoeneich / 7373
called from: pitz
host / server:
Device Base Address:
comments:
1 description of the general flags
2 PITZ meta server documentation meta_doc.html
problems:
1 vme crates state window: for more informations please ask Karen Abrahamyan, room: Zeuthen 1L/46, phone: 7202

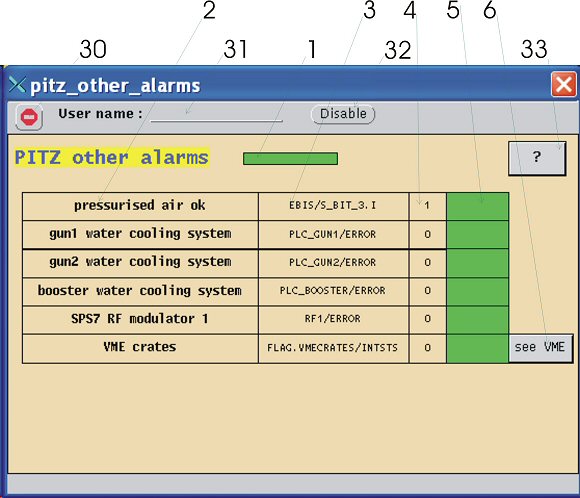

contents:
  name / task / value click double click
1 general_flag other_alarms status (summary of the following doocs properties)
other_alarms is ok

green
other_alarms is not ok red

2  alarm name and description
3 doocs property name for the alarm
4 actual doocs property value for the alarm
5 doocs property status for the alarm
doocs property is ok

green
doocs property is not ok red

6 to see details of the vme crates state (see "problems" above) vme crates state
30 secure sign enable user logon
31 logon user name
32 disable user logon  disable user logon
33 help button this window

Last modified: Februar 23, 2010 13:44 , Bert Schöneich, mailmailto: PITZ - webmaster
